Thermofilm Heatstrip INTENSE (Black) THY Series

RRP: $499.00

3200w RRP From: $599.00

The new HEATSTRIP® Intense wall/ceiling mounted electric infra-red heater is a modern and attractive outdoor heating solution. With a carbon filament element infra-red heating element this slimline heater provides high-performance instant heat. The high-temperature output of the HEATSTRIP® Intense is perfect for exposed outdoor sites, high ceilings and hard to heat indoor and outdoor applications. With black and white models available, this heater can blend into a white ceiling, or be a feature to any outdoor area.

REQUEST MORE INFOMATION
Click here for more

FEATURES

  • Ideal for undercover protected and semi-exposed outdoor locations
  • Easy DIY installation for 2200W unit, 3200W heater must be installed by a licensed electrician

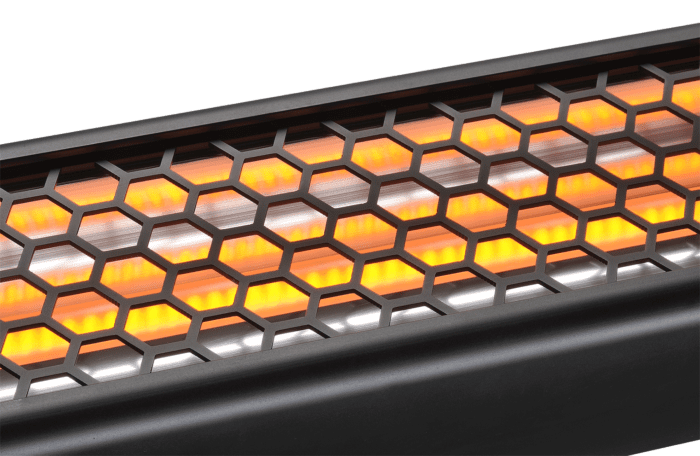

  • High quality construction with a new hexagonal grille
  • Carbon filament infra-red heating element provides high performance instant heat
  • 2-year residential and 1-year commercial warranty

MOUNTING HEIGHT

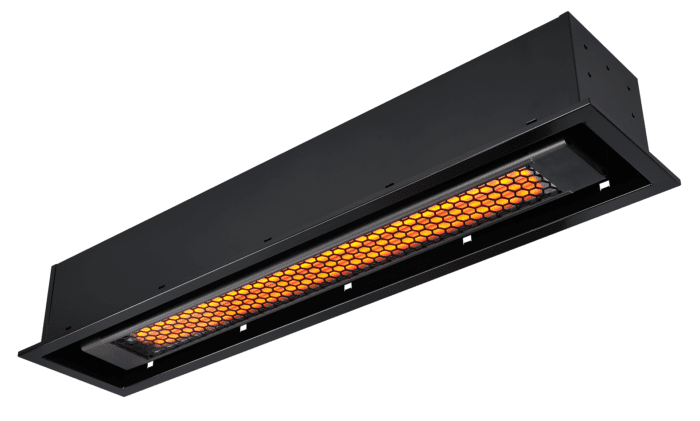

  • Minimum mounting height (including flush mount) 2.1m
  • Ideal mounting height (including flush mount) 2.2m – 2.5m
  • Maximum mounting height (including flush mount) 2.8

The mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range.

GENERAL TECHNICAL DATA

Heating Area

MODEL INDOOR PROTECTED OUTDOOR ENCLOSED OUTDOOR EXPOSED
THY2200 14 m² 9 m² 5 m²
THY3200 21 m² 13 m² 8 m²

Materials of Construction
Heater: Anodised alloy casing and end caps with powder coated hexagon grille with IPX5 protection from water ingress from all directions.

MODEL POWER
(watts)
CURRENT
(amps)
DIMENSIONS
(WxDxH)mm
NETT WEIGHT
(kg)
LEAD
LENGTH
PLUG
THY2200 2200 9.2 1068 x 120 x 90 6 1000 Yes
THY3200 3200 13 1270x 120 x 90 7 1000 No

*Running costs based on $0.25/kwH. Product is suitable for connection to a standard 240V/10amp GPO.
