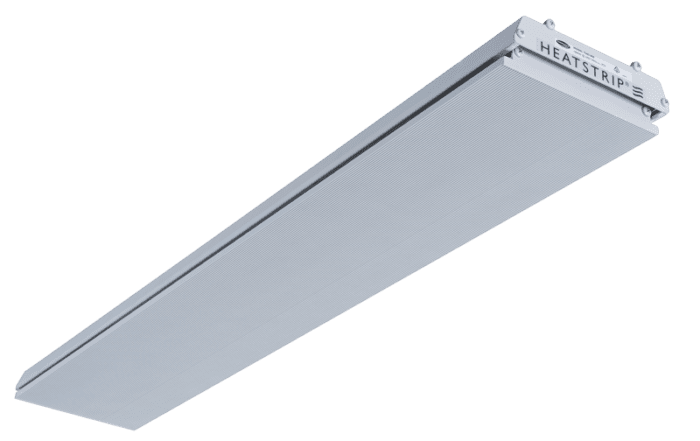

Description
FEATURES

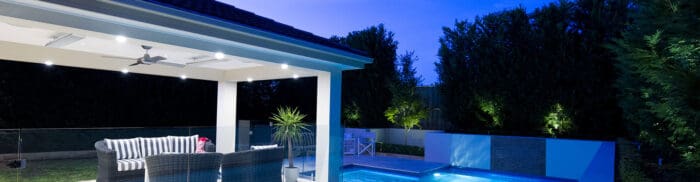

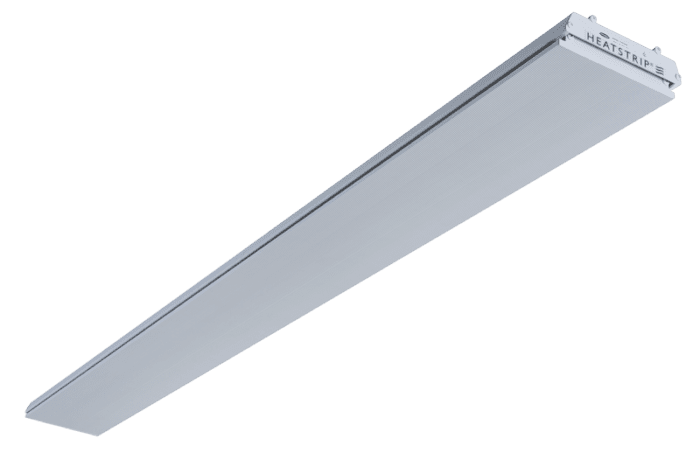

- Electric radiant heater perfect for your protected alfresco area, pergola, verandah, café or difficult to heat indoor area

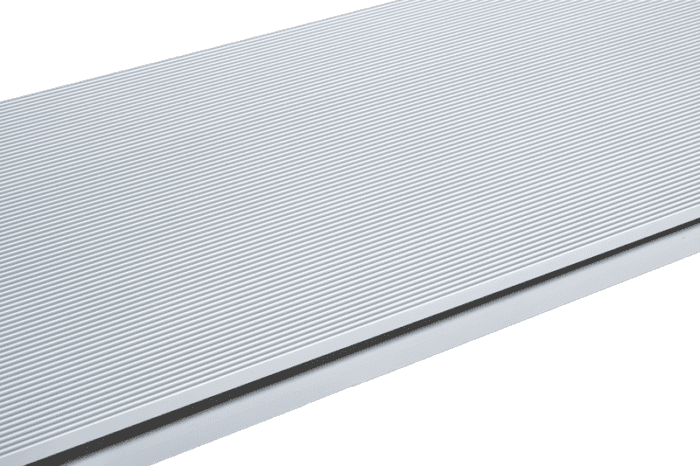

- World leading element design produces a more compact and higher output heater
- Corrosion-resistant to handle tough outdoor environments
- Convenient DIY installation of 1800W and 2400W models. 3600W Model must be hardwired
- 2-year residential and 1-year commercial warranty
MOUNTING HEIGHT

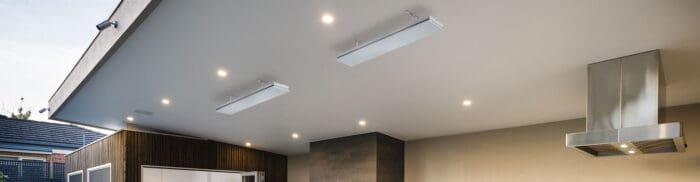

- Minimum mounting height (including flush mount) 2.1m
- Ideal mounting height (including flush mount) 2.2m – 2.5m
- Maximum mounting height (including flush mount) 2.7

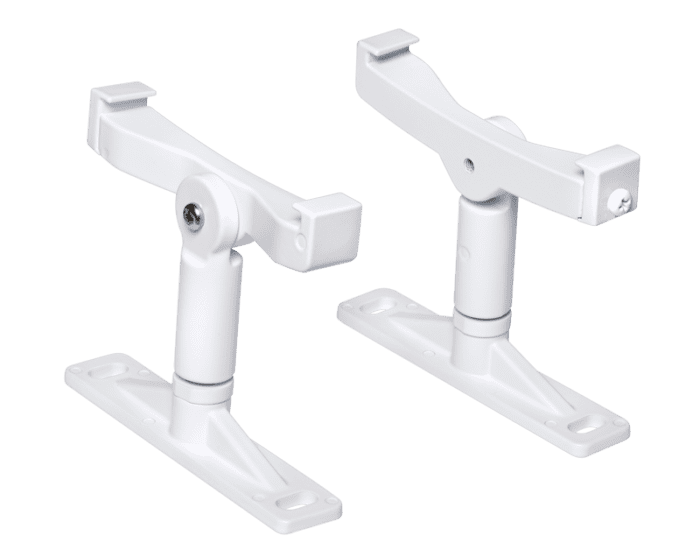

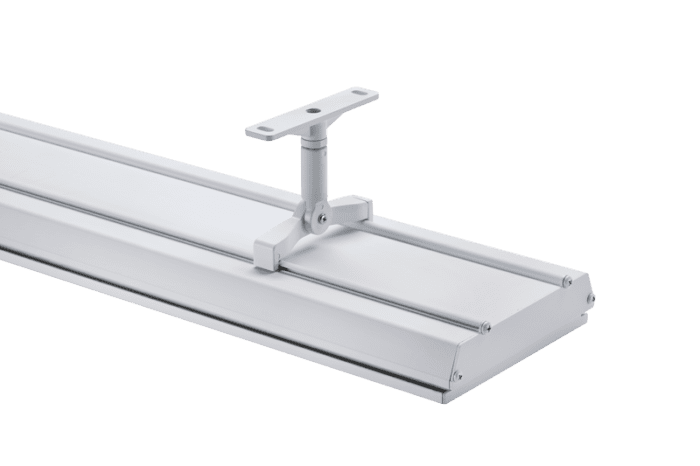

The mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range.
GENERAL TECHNICAL DATA
| MODEL | RUNNING COSTS* | POWER (watts) |
CURRENT (amps) |
DIMENSIONS (mm) |
WEIGHT (kg) |
LEAD LENGTH (mm) |
PLUG | HEATING AREA (m2) |
| THE1800 | 45c / hr | 1800 | 7.5 | 974 x 170 x 48.5 | 4 | 1000 | Yes | 3-4 |

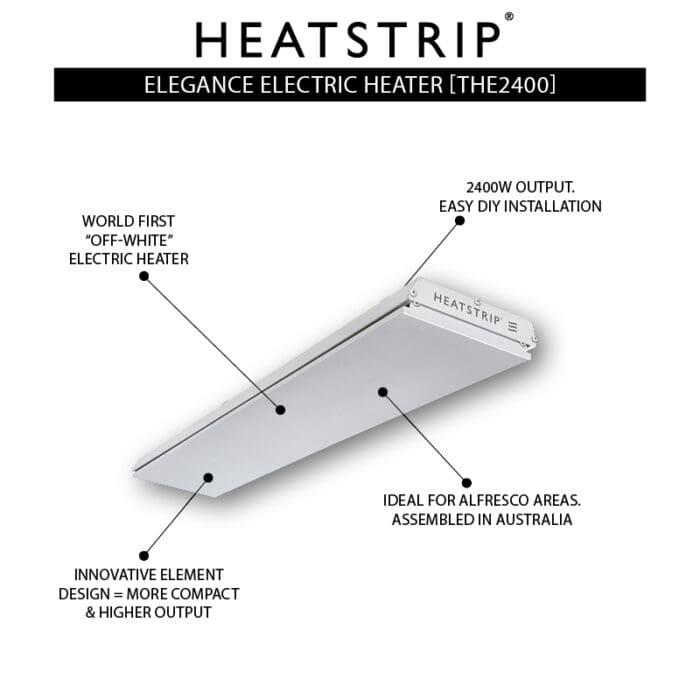

| THE2400 | 60c / hr | 2400 | 10 | 1204 x 170 x 48.5 | 7 | 1000 | Yes | 4-5 |

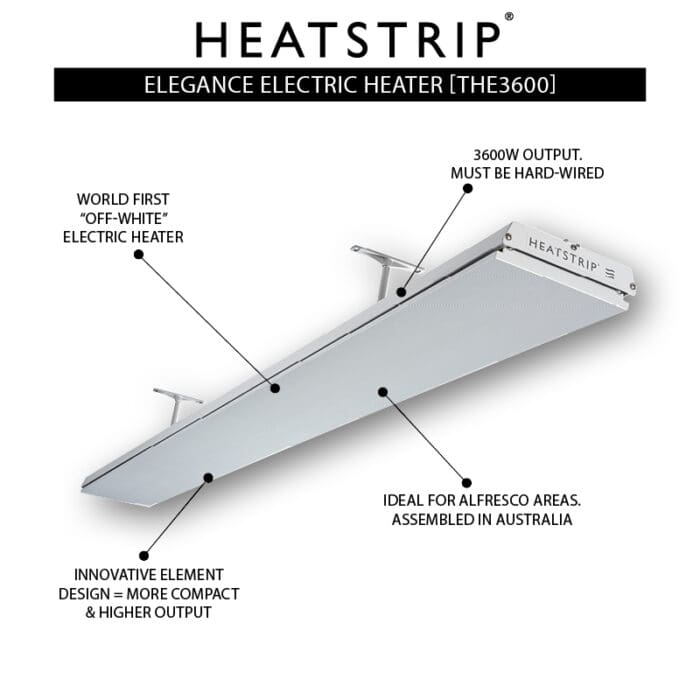

| THE3600 | 90c / hr | 3600 | 15 | 1804 x 170 x 48.5 | 9 | 1000 | No | 5-6 |
