Description

FEATURES

  • 34 MJ, 4 tile commercial quality ceramic burner, for connection to Universal LPG
  • NEW electronic finger pull ignition and flame failure device
  • World-class wind protection rating at 16 kilometres an hour
  • Constructed from stainless steel with high-temperature paint coating
  • Protective grille and reflector included as standard, to guarantee safe operation
  • Reflector design ensures that only a minimum of 500mm overhead clearance is required
  • Optional accessories for low clearance or ceiling
  • Wall mounting bracket allows for multiple mounting angles and is extremely robust to provide strength and support
  • 2-year residential and 1-year commercial warranty

MOUNTING HEIGHT

  • Minimum Recommended mounting height: 2.0m
  • Maximum mounting height: 3.5m outdoors

For the standard heat reflector supplied with the heater, a 500mm overhead clearance is required. For low clearance mounting, please use the optional Heatshield (TGHAC-003) which provides for a 300mm overhead clearance.

For high ceilings or mounting flexibility, the optional Ceiling Mount Extension Pole (TGHAC-004) can be used to reduce the height of the heater by 500mm or for mounting from the ceiling when a wall is not available.

GENERAL TECHNICAL DATA

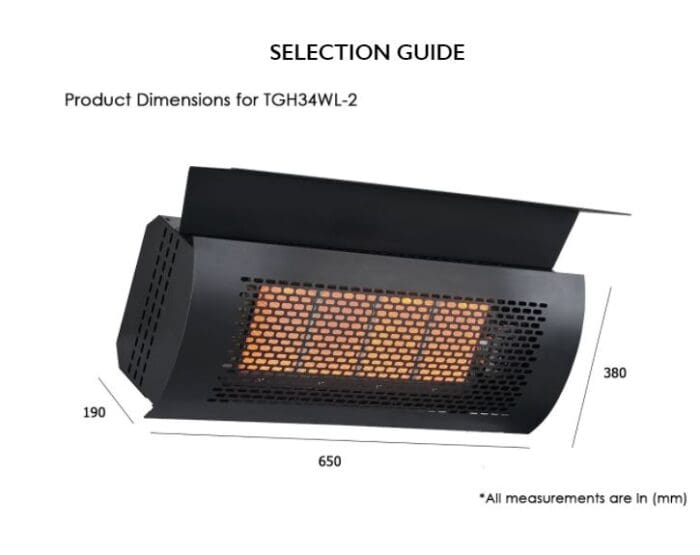

MODEL TILES MJ IGNITION DIMENSIONS (mm) WEIGHT (kgs) HEATING AREA (m2) GAS TYPE
TGH34WLPG-2 4 34 Electronic Finger Pool 650(w) x 190(D) x 380(H) 31.5 16 Propane
