Description
Construction
| Weight | 10kg [22.05lb] |

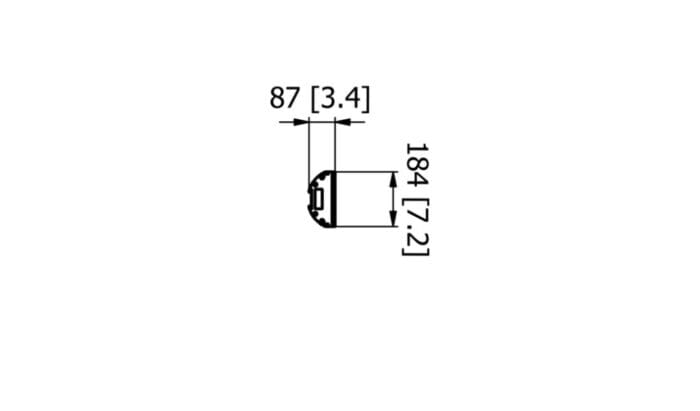

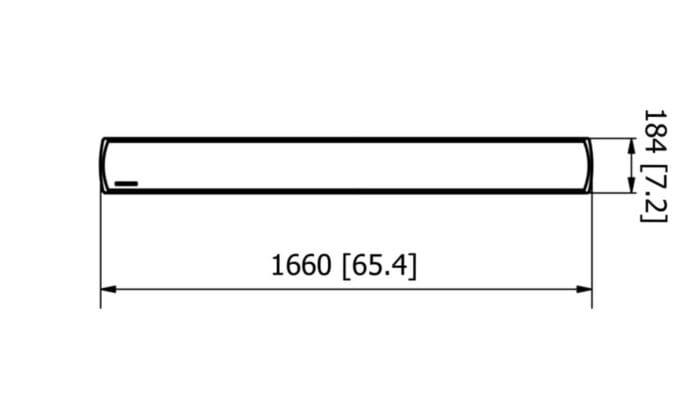

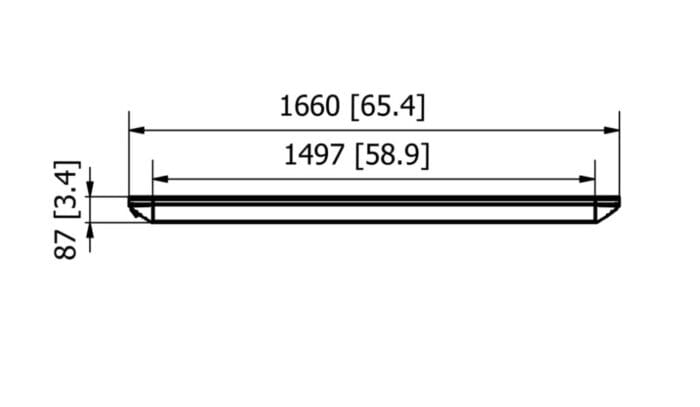

| Model Dimensions mm [in] | L 1660 [65.4]W 184 [7.2]H 87 [3.4] |
| Application | Indoor & Outdoor |
| Materials | Aluminum body, glass ceramic front |
| Model Colours | Black White |
The Vision 3200W is UL Listed.
Efficiency
| Installation Height | 2.1-2.7 m |
| Power / Current | 3200 W / 13.91 A |
| Voltage | 220-240 V AC ~ 50/60 Hz |
| Max. Power In | 30-60 sec. |
| Radiant Efficiency | 90% |
| Surface Temp. | 300 °C |
| Body Temp. | Max. 130 °C |
| Filament Temp. | 1200-1300 °C |
| Colour Temp. | 1550-1650 K |
| Visible Light | < 300 Lumen |
*All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height).
