Description

Dimensions

Heatmaster Open Wood Fireplace Box Dimensions:

Insulated Fireplace Model Height Width Depth
A650 Fireplace 680mm 838mm 470mm
A750 Fireplace 680mm 910mm 495mm
A900 Fireplace 740mm 1060mm 565mm
Uninsulated Fireplace Model Height Width Depth Height with flange Width with flange
B650 Fireplace 595mm 680mm 380mm 647mm 806mm
B750 Fireplace 635mm 785mm 435mm 685mm 905mm
B900 Fireplace 695mm 935mm 480mm 730mm 1055mm

Some Key Features Of The Heatmaster Open Wood Fireplace:

  • Winner of the Australian Design Award
  • Thick 6mm lining of firebox
  • 5 Sided heat exchange system for up to 8 times more efficiency
  • Removable Ashtray for easy cleaning
  • Insulated models available for zero clearance installation (no brickwork required*)
  • Options

    Fascias, Mantels, Firescreens And Cowls:

    A range of decorative fascias and mantels are available from contemporary to traditional.
    See your local dealer for further information.

    1. Heatmaster A900 open wood fireplace with 3-sided Contemporary fascia
    2. Heatmaster A650 open wood fireplace with brassed regal fascia and Victorian mantel
    3. A fixed mesh screen is available for all Heatmaster open wood fireplaces
    4. A Range of Heatmaster open wood fire cowls are available

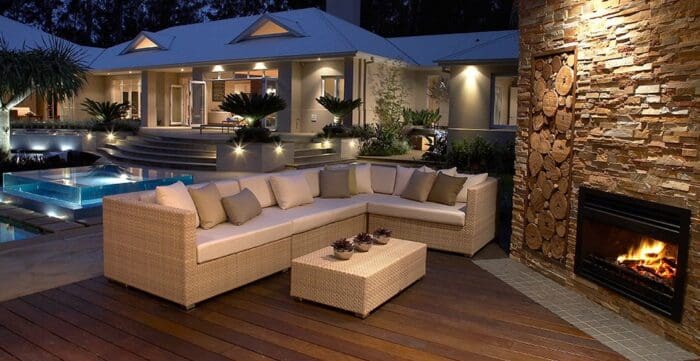

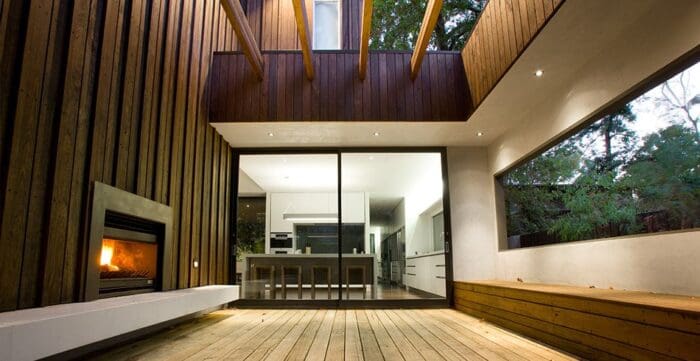

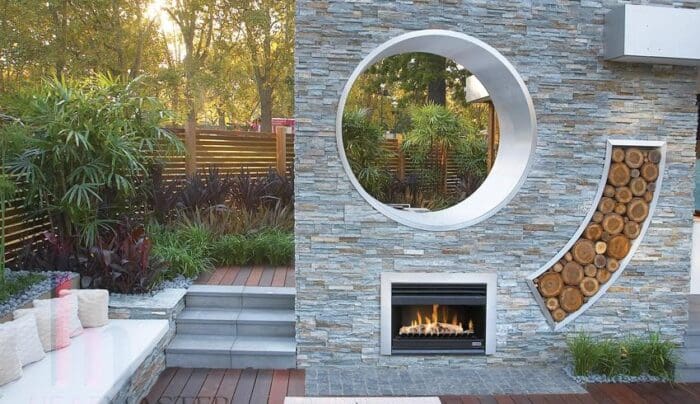

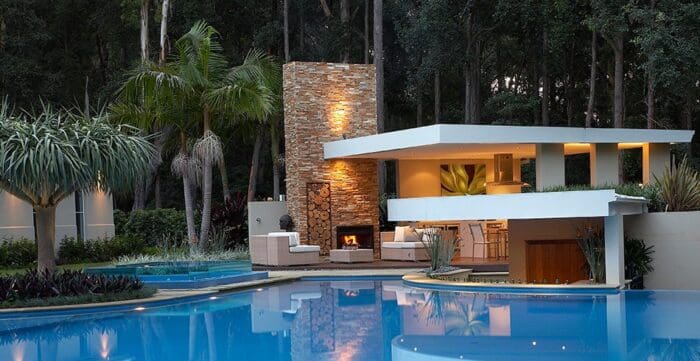

    Outside Installation

    While the Heatmaster open fire is designed for indoor use, many people choose to install their fire in an outdoor or alfresco area. Please note that the Heatmaster firebox is manufactured with mild steel and if subjected to weather, surface rust will occur.
