Description

Technical Specs

Voltage 12V
Wattage 100W start/16.6W cont.
Weight 208 LBS
Dimensions 52”H x 63”W x 25”D
Surface Cooking Area 658 sq in.
Grease Tray 12 Gauge Steel
Lid 13 Gauge Steel
SS Lid 14 Gauge Steel
Body 14 Gauge Steel
Igniter 12V; 100W
Igniter (Hot Rod) Diameter .625 in.
Height of Cooking Surface to Lid 13.5 in. clearance
Hopper Capacity (LBS of pellets) 18 LBS

Grill Functionality

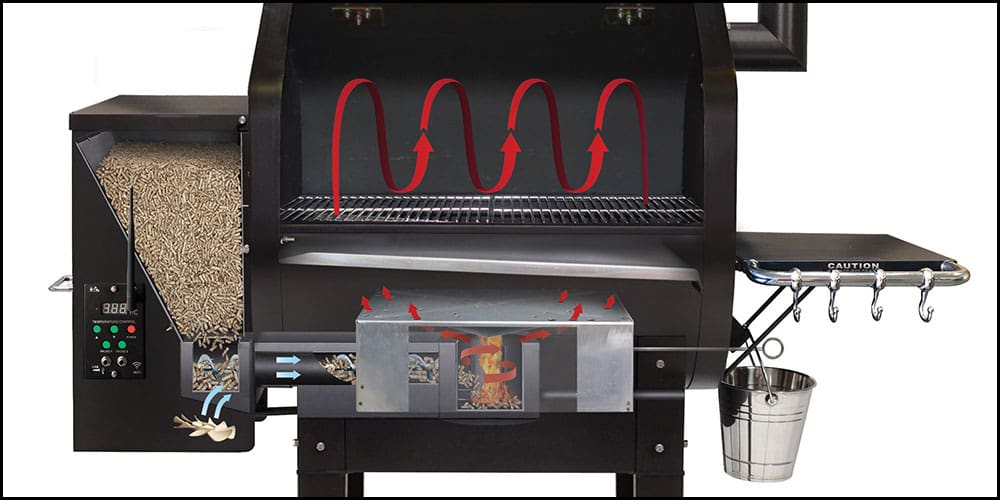

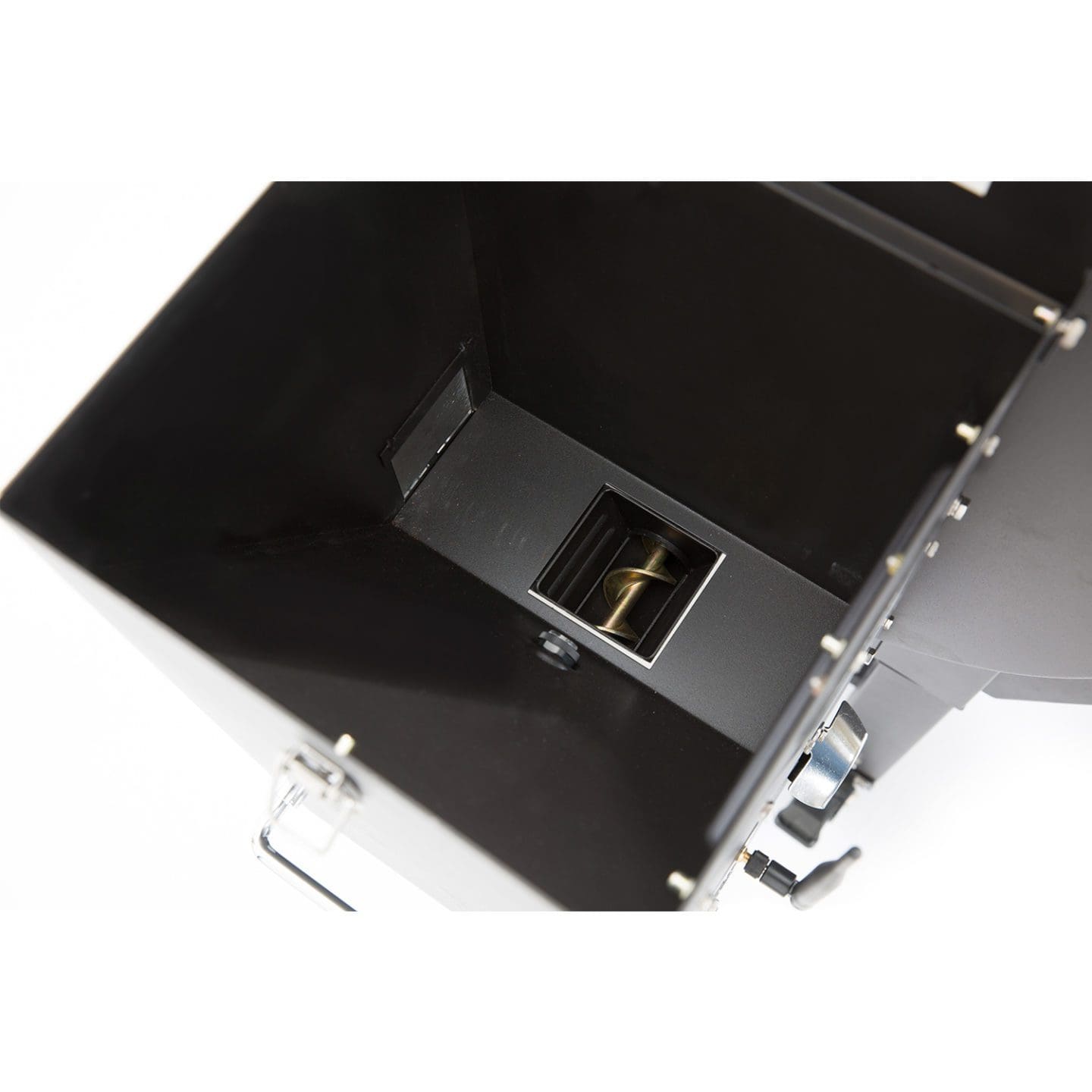

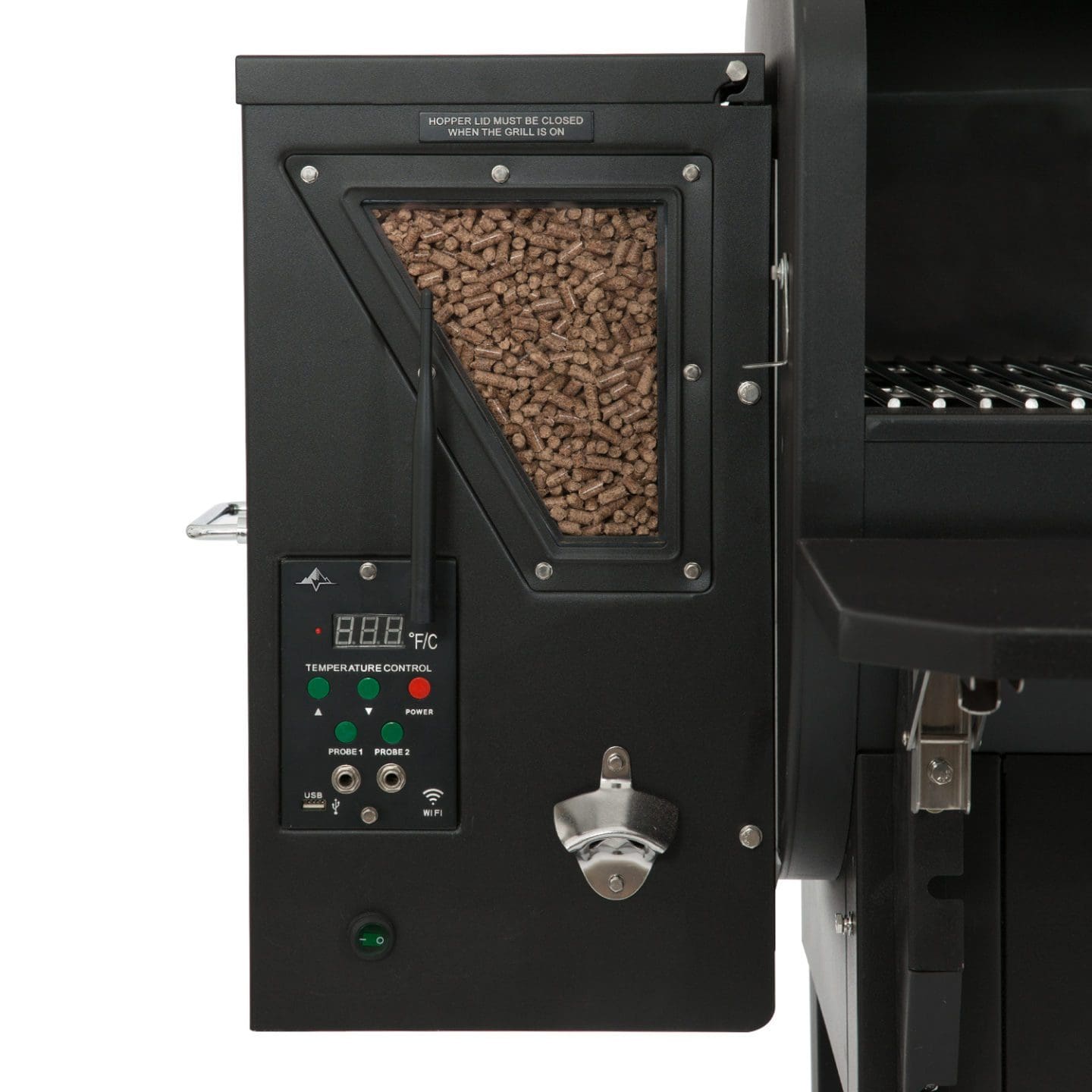

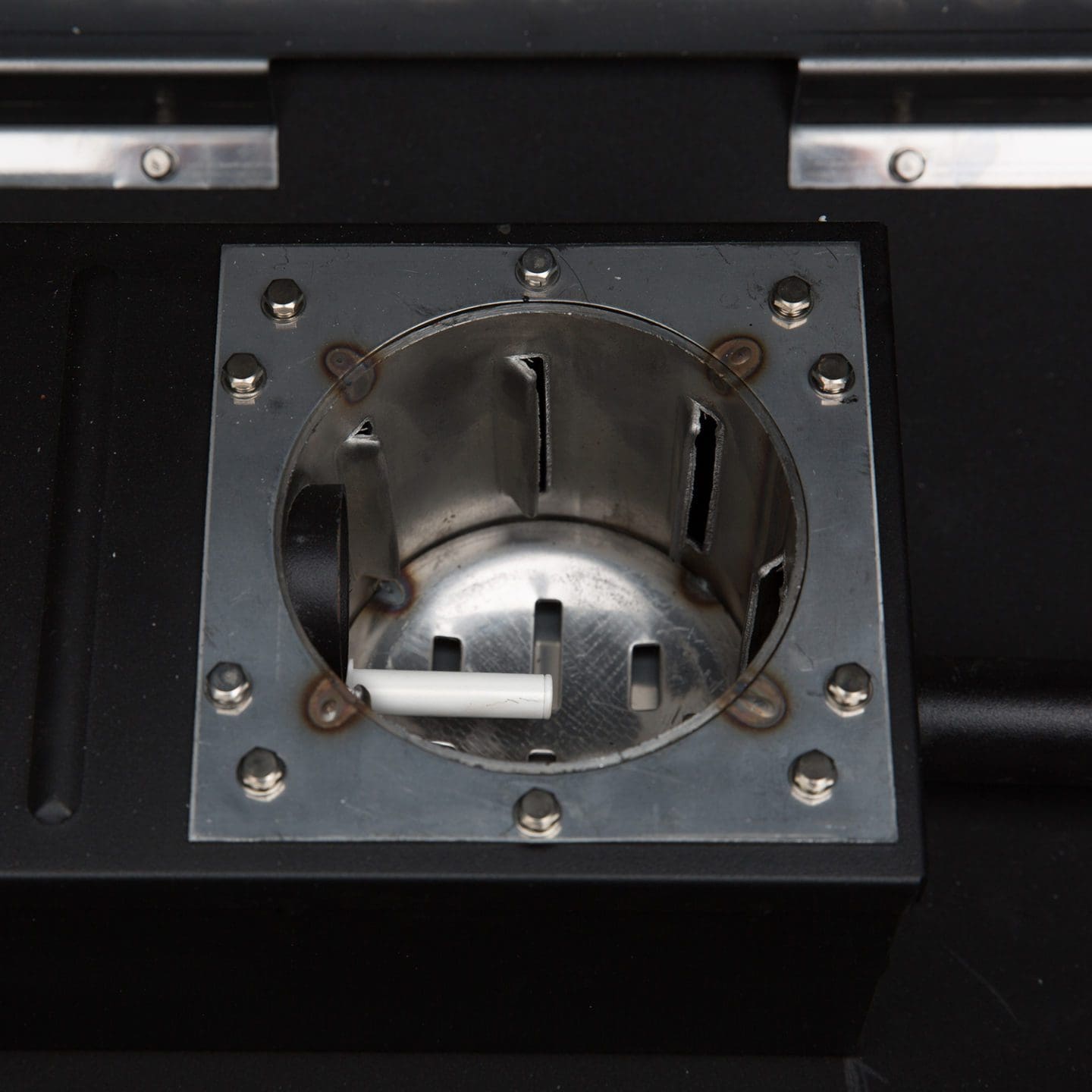

A motor turns the auger which feeds pellets into the firebox. There, a heat rod automatically ignites the pellets and a variable speed fan keeps them burning. The Venturi-style firebox is lined with vertical vents creating a burn pot cyclone of air flow for maximum heat and complete combustion of the pellets with minimal waste.  A heat shield creates an even distribution of heat and pure hardwood smoke throughout the grill chamber.
